Jill Mill, Clayton

A wind-powered corn mill in the historic county of Sussex, England.

See related images and documents.
See images only.

Jill post mill was constructed in 1821 and originally stood in Brighton. Around 1850, James Mitchell sought to add a second windmill to his existing post mill, Duncton Mill, on this well-winded site on top of the Downs at Clayton. In 1852, Mitchell purchased Mr Lashmar's post mill which, due to the rapid expansion of Brighton, had been deprived of wind and was standing idle. The mill was partly dismantled and moved in manageable sections up to the Downs, where it was re-erected. A large area of the hillside had to be excavated and levelled to provide space for a 90ft-diameter turning circle for the "tailpole fantackle", which was a speciality of millwright Samuel Medhurst of Lewes.

Jill windmill was joined by the tower mill known as Jack following the demise of Duncton Mill. The two mills were owned and operated by the Hammond Brothers, Joseph and Charles, from 1867 (on the death of James Mitchell) until 1882 when Joseph left, Charles continuing alone until 1903 when the mills were sold to Mr Wood of Hassocks. They ceased to be used in 1906. Jill lost her tailpole and fantail early in her retirement and was loaded with chalk to prevent her from swinging about in the wind.

Prior to 1905 the weatherboarded roof and front wall of Jill Mill had been covered with sheet metal. This undoubtedly helped to preserve the mill in a reasonable condition. In 1958 Henry Longhurst, the golf writer and broadcaster, conveyed Jill Mill to the local district council. Restoration of the mill to full working order was mainly carried out by volunteer labour, after some tasks had been completed by millwrights E. Hole & Son of Burgess Hill. Repairs commenced in 1978 and the sails turned again in October 1983. Flour was produced by wind power once more on 10th May 1986, for the first time in eighty years.

Jill windmill is a large white-painted post mill constructed in the Sussex tradition. The three-floored mill body rotates above a two-storey tarred wooden roundhouse which is built on a low brick plinth. The windshaft is of wood with a cast-iron poll end, dated 1831, to carry the sail stocks. There are four patent sails, termed "sweeps" south of the Thames. Two pairs of millstones are positioned in a head-and-tail arrangement, driven by wooden clasp-arm brake- and tail wheels. The head stones are of Derbyshire Peak for grinding barley and oats; the tail stones are of French Burr for flour milling. On the lower floor of the mill body is a flour dresser of the wire machine type.

Jill windmill is looked after by the Jack and Jill Windmills Society and is Grade II* Listed along with Jack and the Mill House.

Website  -  Facebook

Full details

Alternative names Jill Windmill
Power source Wind
Mill type Post mill
Mill function Corn mill
Archive ID 2614
Location Clayton
Historic county Sussex
Country England, United Kingdom
NGR TQ 30322 13393
Latitude/longitude 50.91692000, -0.13938900

Location

Gallery

  • Jill Mill (left), in company with larger brother Jack, in working order, depicted in this postcard of c1900
  • Clayton mills, shortly after ceasing work, photographed in 1911
  • The mills in retirement, photographed during the mid-20th century

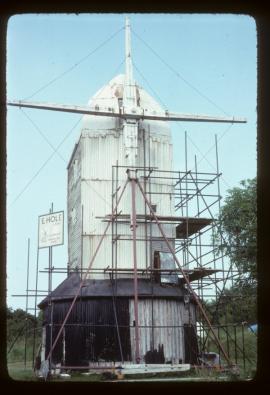

  • The restoration of Jill Mill begins in June 1979, under millwrights E. Hole & Son of Burgess Hill
  • Rear view of Jill Mill in summer 1979, photographed by Frank Gregory. The mill’s tailpole is missing
  • Restoration of the mill to working order has been completed
  • Internal machinery: the wooden clasp-arm tail wheel drives a pair of millstones, hidden inside its octagonal timber casing
  • Volunteers have reconstructed the wire-machine flour dresser, which separates the milled flour into different grades
  • The sack hoist, suspended from the roof rafters, lifts heavy sacks of grain from the ground floor of the roundhouse to the bin floor
  • One of the massive brick piers at the base of the building, supporting one corner of the timber ‘trestle’ or substructure of the windmill
  • Photo: Mark Berry
  • Photo: Sara and Oscar Jarman
  • Photo: Sara and Oscar Jarman
  • Photo: Sara and Oscar Jarman
  • Photo: Sara and Oscar Jarman
  • Photo: Sara and Oscar Jarman
  • Photo: Sara and Oscar Jarman
