Mill:

Valence Pump, Brasted

A water-powered pumping mill/wheel in the historic county of Kent, England.

See related images and documents.
See images only.

This mill almost certainly occupied a Domesday mill site, and is the only remaining waterwheel still to be found on the river Darent. This fine example of a Victorian pumping engine dates from approximately 1858, and replaced a previous installation which supplied Valence House and other local residences with water. It ceased to function some years ago but remains reasonably complete and preserved by its owner. The whole installation is set in a roofless brick enclosure and was powered by a picturesque and well preserved pond. An all iron breastshot wheel measures 16ft 8" in diameter and is 4' wide; it turned a 3' iron pitwheel engaging two small pinions which operated crank shafts turning force pumps along a large metal pipe. The pump rods are not present, but were recovered from the pit when it was excavated by the children of Wildernesse School in the 1970's.

This mill had a breastshot waterwheel.

Full details

Power source Water
Mill type Watermill
River Tributary to Darent
Mill function Pumping mill/wheel
Archive ID 11002
Location Brasted, Sevenoaks
Historic county Kent
Country England, United Kingdom
NGR TQ 460 536
Latitude/longitude 51.26286700, 0.09117500

Location

Gallery

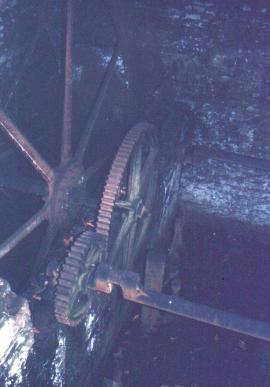

  • Pumping gear. Photo by Rob Cumming, 1983.
  • The pumping wheel. Photo by Rob Cumming, 1984.
  • The pumping engine. Photo by Rob Cumming, 1984.
  • Pumping gear. Photo by Rob Cumming, 1985.

References

  • Alan Stoyel, Mills Archive Foundation Trustee, 2006

Contributors

Rob Cumming, May 2016
